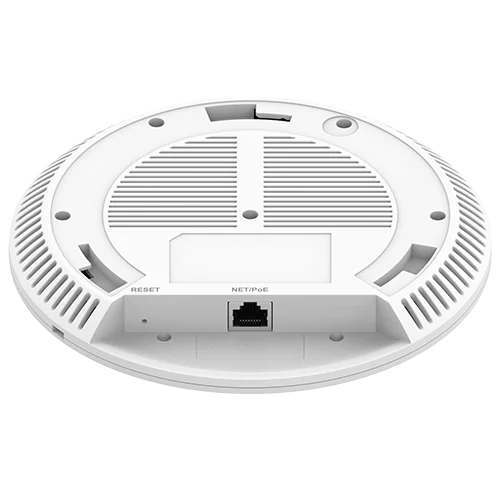

GWN7660E
GWN Enterprise-Grade Wi-Fi 6 Access Point
The GWN7660E is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2×2:2 MU-MIMO technology on the 2.4G band and 3×3:2 MU-MIMO on the 5G band
- 3Gbps aggregate wireless throughput and 1 Gigabit wireline port
- ย Dual-band 2.4G 2×2:2 and 5G 3×3:2 MU- MIMO with OFMDA and XTRA Range technology
- Up to 175-meter coverage range
- Supports 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self-power adaptation upon auto-detection of PoE or PoE+
- Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller
Description
Market-Leading Features
The GWN7660E comes equipped with advanced performance-boosting features:
- UL/DL OFDMA:ย Access points running on the 801.11ax standard perform better in dense environments and are designed to manage multiple Wi-Fi devices with varying bandwidth demands
- Beamforming Technology:ย AP detects wireless clients and focuses signals towards them
- Multiple Customized SSIDs:ย Up to 32 SSID channels with customized client configurations, captive portal, and bandwidth limits
- QoS Standards:ย Prioritizes certain network traffic/devices so critical tasks don’t compete for bandwidth, can be customized based on deployment
Wi-Fi 6
Wi-Fi Allianceยฎ is the worldwide network of companies bringing you Wi-Fiยฎ, one of the worldโs most valued communications technologies. Our vision is to connect everyone and everything, everywhere. Wi-Fi Alliance drives global Wi-Fi adoption and evolution through thought leadership, spectrum advocacy, and industry-wide collaboration. Grandstreamโs Wi-Fi 6 access points have been CERTIFIED, meaning they have undergone rigorous testing. When a product passes the tests successfully, the manufacturer can use the Wi-Fi CERTIFIED logo.
Certification means that a product has been tested in numerous configurations with a diverse sample of other devices to validate interoperability with other CERTIFIED Wi-Fi equipment operating in the same frequency band.
Specification
| Client DevicesUp to 256 |
|---|
| 2.4G Throughput573.5Mbps (2×2:2 MU-MIMO) |
| 5G Throughput2.4Gbps (3×3:2 MU-MIMO) |
| 6G ThroughputN/A |
| RangeUp to 175 Meters |
| Network Interfaces1x autosensing 10/100/1000 Base-T Ethernet Port |
| PoE/PoE+Supports PoE 802.3af / 802.3at; Maximum Power Consumption: 12.95W |
| Wi-Fi StandardsIEEE 802.11 a/b/g/n/ac/ax |
| SSIDs32 SSIDs total, 16 per radio |
| Antennas5 individual internal antennas |
| Wi-Fi and Security SystemsWPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device |
| Dimensions180.4mm x 180.4mm x 40.8mm |
| MountingIndoor wall mount or ceiling mount |
